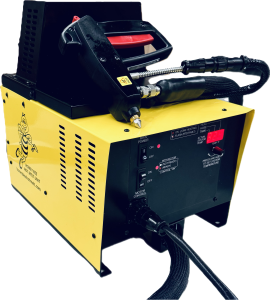

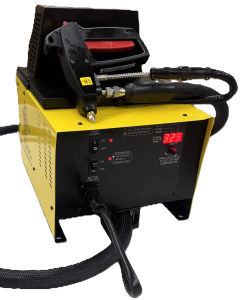

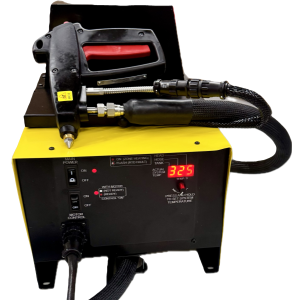

Honeybee Hot Melt Tabletop Unit
Introducing the new tabletop Honeybee Hotmelt Unit—built to replace expensive glue sticks with versatile bulk adhesive. This upgrade not only opens the door to a wider range of hot melt options from virtually any supplier but also cuts adhesive costs by as much as 50%, delivering both flexibility and savings
TECHNICAL DATA
| Tank capacity | 7lbs |
| Melting rate (*) | 10lbs/hr |
| Pumps number | 1 |
| Hydraulic outputs | 1 |
| Number of electrical outputs | 1 |
| Motor power | 25rpm AC Gear Motor |
| Motor speed (*) | FIXED |
| Dimensions | Length: 15in Width: 12in Height 15in= |
| Working temperature | 100-375°F |
| Temperature control | Pt100 ohm RTD |
| Weight | 30lbs |
| By-pass valve | Mechanical |
| Working pressure | Up to 80 bar |
| Electrical connection | 120V Single phase |
| Options | 120v Automatic Hot Melt Applicator |
FEATURES
- Simple all-electric design
- Lightweight and easy to move
- Adjustable temperature and flow rates.
- Fan-Cooled 25rpm AC Gear Motor
- 120V Unit
